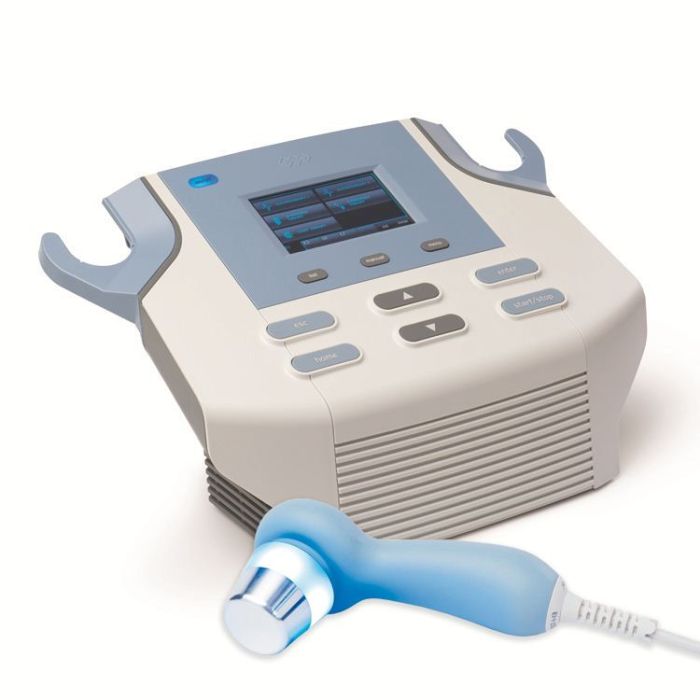

BTL-4710 Smart Ultrasound with 5cm applicator
Login / Create account as a healthcare professional to unlock additional discounts on most products.
Using high-frequency ultrasound therapy is effective in decreasing muscle spasms and reducing pain. BTL’s modern, reliable ultrasound has ergonomically shaped, lightweight and waterproof ultrasound heads with built-in visual contact control. These units have a very low BNR (beam nonuniformity ratio, indicates the quality of the ultrasound beam). A low BNR prevents hot spots and tissue damage. BTL's ultrasound BNR is between 2.2-3 (FDA testing), with variation depending on the soundhead size, and MHz delivered. Control panel is programmable is multiple languages, including English and French.
Features
- More efficient therapy & elimination of therapist’s fault
- Maximum safety using the embedded Rotary Field Technology
- Equal ultrasound dosage over the entire treated area
- Alternating frequencies 1 and 3 MHz
- Heated ultrasound heads
- Modular frequency is 10-150 Hz
- Duty Factor is 5-100%
- Maximum Intensity in continuous mode is 2 W/cm²
- Maximum Intensity in pulsed mode is 3 W/cm²
- 4.3" colour touch screen that provides clear visualization of all important information
- Extensive library of Preset Protocols, classified according to biological effects, with full colour anatomical images and therapy descriptions including applicator position
- 2 soundheads can be connected simultaneously
- Preset protocols and therapeutic encyclopaedia
- Optional light weight battery increases portability
- Optional models of HandsFree Sono Applicators: 18 cm² with 6 crystals; 12 cm² with 4 crystals
- MDALL 94143
Documents
Frequently Asked Questions
Therapeutic ultrasound is frequently offered by rehabilitation and wellness clinics, and healthcare professionals such as physiotherapists, chiropractors, athletic trainers, massage therapists and more. It is a well-studied and very safe modality for clinician to offer to their patients.
BTL-4710 Smart Ultrasound can be used to treat many conditions, but some common conditions are:
Myofascial pain syndrome
Tendinitis
Painful conditions such as: Epicondylitis (tennis elbow), plantar fasciitis, bursitis, frozen shoulder and more
Degenerative joint disorders
Rheumatoid arthritis
Contusions and distrosions (subacute & chronic)
Oedemas & Hematomas (subacute & chronic)
And more!
Therapeutic ultrasound is ultrasound used to help patients “feel better”, rather than diagnostic ultrasound which provides an image of the treatment area.
The BTL-4710 Smart therapeutic ultrasound offers both 1MHz frequency for deeper penetration, and 3MHz frequency for more superficial indications.
Yes. The Smart model allows clinicians to choose between 1MHz, 3MHz and alternating frequencies.
The BTL-4710 Smart ultrasound includes a list of clinical presentations that you can select from, and the system will set up the parameters based on up to date studies and clinical research. Want more information on studies? Click here: INCLUDE LINK TO STUDIES
The BTL-4710 Smart ultrasound system has different therapeutic effects. Thermal effects are the result of using continuous mode on subacute or chronic conditions, and result in myorelaxation or increasing soft tissue extensibility. Non-thermal effects can be achieved by using pulsed mode, and result in tissue haling and pain relief, as well as effectively treating oedema & hematoma.
All BTL therapeutic ultrasound systems include a small bottle of ultrasound gel, which is necessary for treating safely. Apply a generous amount of ultrasound gel to the treatment area, and keep the ultrasound applicator in good contact with the patient. Ensure the ultrasound applicator is moving continuously to limit any risk of injury. Need more ultrasound gel? Click here: Ultrasound gel for therapeutic applications | OrthoCanada
Yes, the BTL-4710 Smart ultrasound applicators are fully water-proof.
Yes. Its durability, preset protocols, and ergonomic design make it ideal for busy practices.
The Smart model has a 4.3” touchscreen and has buttons for making treatment adjustments, while the Premium model offers a larger 7” touchscreen, a dial for treatment adjustments, and a few additional interface features. Both deliver the same clinical treatment power.
No, the 1cm applicator is an optional accessory. The BTL-4710 Smart includes the manual 5 cm² applicator as standard. However, the BTL-4710 Smart ultrasound has two ports, so both applicators can be plugged in at the same time.
No, the HandsFree Sono® is an optional accessory. The BTL-4710 Smart includes the manual 5 cm² applicator as standard.
All BTL systems are manufactured in Europe, by BTL Industries. BTL Industries is a leading manufacturer of medical equipment around the world, with over 80 worldwide offices. They are a leader in non-invasive treatments for all fields of healthcare.
