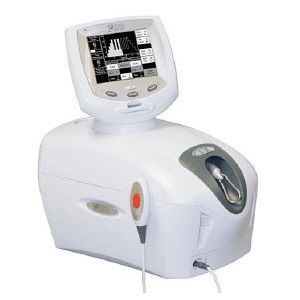

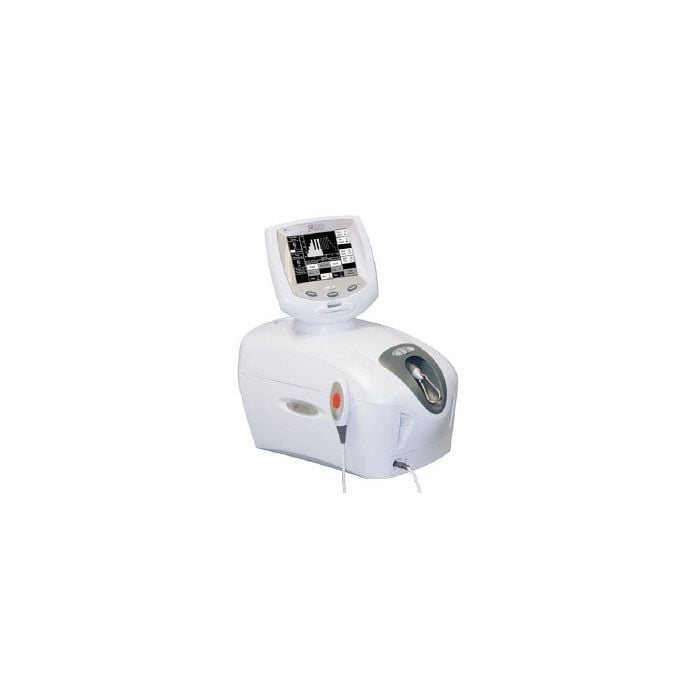

TX Traction System

Chattanooga / DJO

SKU: OC-3117

Icon Get expert advice

Get Expert Advice

For healthcare professionals only
Contact us >


Chattanooga TX Traction System has many features that makes it the perfect traction machine for your clinic. Graduated static, intermittent and cyclic tension options closely mimic the feel of hands-on therapy. Pressure is controlled, consistent & repeatable traction force. Quick set-up and easy belting provides comfortable and stable anchoring of the patient. Compliments manual therapy, reduces physical demands on the clinician, and helps optimize patient flow efficiency in clinic. Applicable for acute, sub-acute and chronic conditions

Product Features:
- Digital Touch Screen Interface
- 270° Pivoting Interface
- Patient Pain Mapping
- Patient Data Card stores up to 14 patient treatment sessions
- Store up to 10 user protocols
- Real-time digital treatment tracking
- User-defined Hold, Rest and Treatment times
- Intermittent, Static and Cyclic traction programs
- Progressive and Regressive settings
- Traction tension parameters 0-200 lbs
- Chip card allows for future upgrade options
- Built-in safety features
- Patient Interrupt Switch
- Cervical maximum poundage warning
- Audible signal at theend of treatment and if Patient Interrupt Switch is activated
- Two Year Warranty

Treatment/Prevention of the following:
- Relieves pain and restores function by mobilizing the muscles, ligaments and joints decompressing the nerve roots and distracting inter vertebral discs
- Reduces Disc Pressure
- Relieves Nerve Root Compression
- Improves Blood Flow
- Relaxes Muscles

Technical Specifications:

Specification Description
  Mains Power:   100-240 V, 50/60 Hz
  Power Consumption:   75 V
  Current Consumption:   3.2 Amps Max
  Product Weight:   30 lbs (14 kg)
  Dimensions:   17.5"L x 9.5"W x 17.5"H (45 cm x 24 cm x 45 cm)
  Electrical Safety Class:   Class 1, Type B
  Safety Tests:   IEC/UL/EN: 60661-1, 60601-1-2; CAN C22.2 No. 601.1-M90 w/A2; cETLus Listed

Traction Tension Parameters:

Traction Tension Parameters     Minimum - Maximum Increments
  Traction Period   1 - 99 Minutes   1 Minute
  Hold Period   0 - 99 Seconds   1 Second
  Rest Period   0 - 99 Seconds   1 Second
  Traction Tension   0 - 200 lb [(0 kg/0 N) - (90 kg/890 N)     1 lb (1 kg/5 N)
  Progressive Steps   1 Step - 9 Steps   1 Step
  Regressive Steps   1 Step - 9 Steps   1 Step

Mains Power :
100-240 VAC, 50/60 Hz


Safety Tests :
IEC/UL/EN 60661-1
IEC/UL/EN 60601-1-2
CAN C22.2 NO. 601.1-M90 w/ AZ
