NuStep T5 Recumbent Cross Trainer
SKU
OC-040071
Login / Create account as a healthcare professional to unlock additional discounts on most products.
Language
Special pricing available for healthcare professionals. Create an account.
Used in over 400 hospitals, rehab centers & seniors homes across Canada.
The NuStep T5 Series
The NuStep T5 is an accessible recumbent cross trainer designed for Canadian rehabilitation, physiotherapy, senior wellness, and fitness settings. It combines low-impact, full-body motion with adaptable settings to support users across a wide range of mobility and strength levels.
The T5 features a low step-through design, a 360° swivel seat, and stride control, making it ideal for inclusive exercise, rehab protocols, or neurological training. Incorporated contact heart rate handles add an extra level of security for patients beginning an exercise program after cardiac issues.
Accessibility options can be added to ensure that every patient can use the system, regardless of ability. The Stability Essentials Bundle and Total Essentials Bundle increase patients' ability to use the system, even when limb strength or control is limited.
Who can benefits from a NuStep T5?
Retirement and Senior Centres
Offer residents and members safe, supportive cardiovascular exercise for residents.
Physiotherapy Practices
Provide gentle full-body motion options for clients with joint pain or mobility limitations.
Neurological Rehab
Perfect for integrating upright stepping movement for patients recovering motor control or gait.
Home Users
New users and athletes benefit from low-impact cardio that they can tailor to their needs and abilities.
Talk to an Exercise Specialist
to see if the Nustep T5 is right for you!
Or write to us at sales@orthocanada.com to start the conversation!

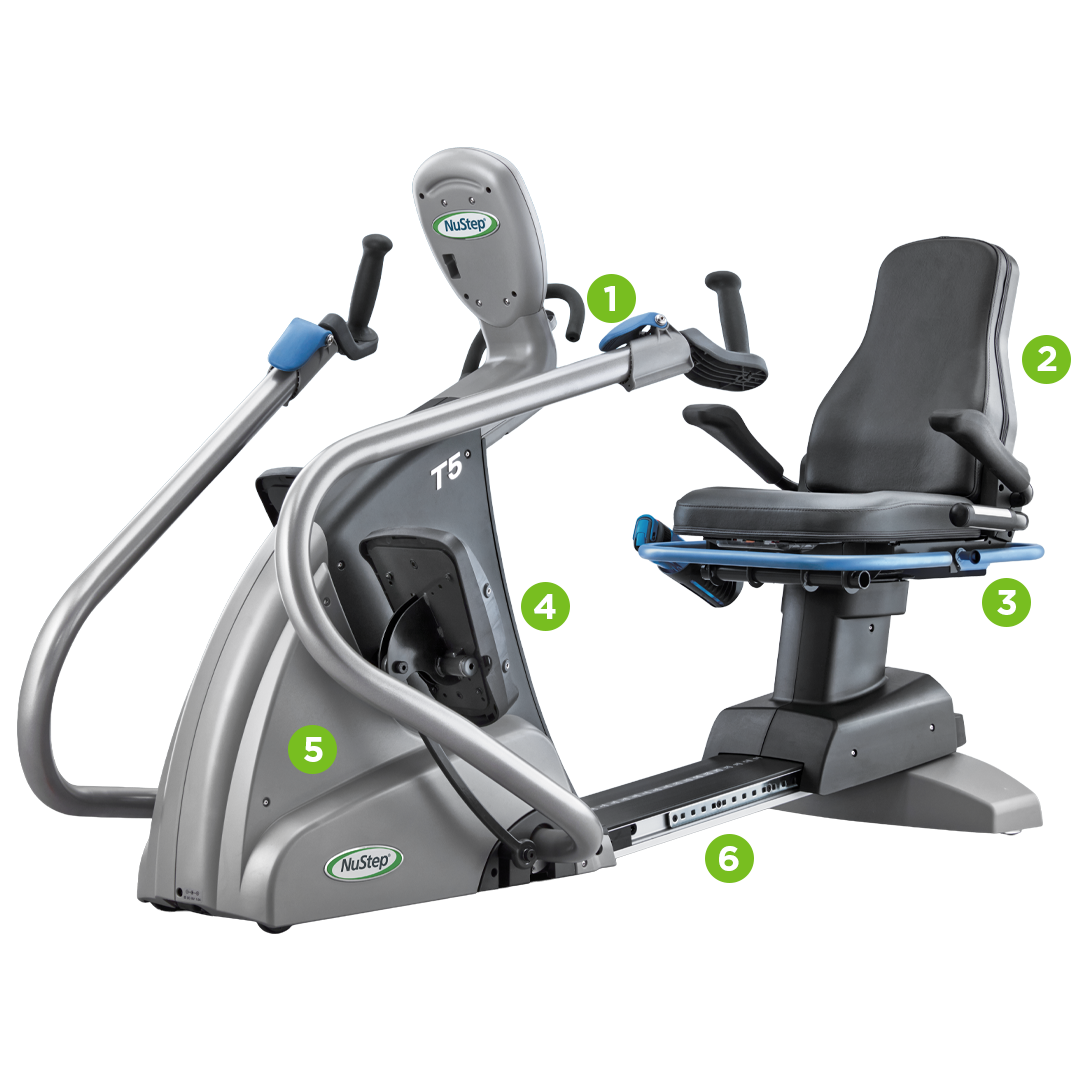

Key Features & Highlights
1
Grab ring & Stride Lock for safe access by users with mobility limitations2
Comfortable 360° swivel seat with lock at 45° increments3
Contact heart rate handles4
User-controlled-step length, smooth-stepping motion5
15 levels of resistance6
Low step-through height for safety, accessibility & inclusivity
WellGrip Gloves
Supports the left and/or right hand, and allows the user to maintain a stable, correct hand position. Supports the wrist, preventing wrist flexion, but still allowing for a full range of motion.
Leg Stabilizer
Offers advanced support for users with lower-body deficiencies or weaknesses that require better leg and foot alignment to achieve better results. Available in unilateral or bilateral configuration.

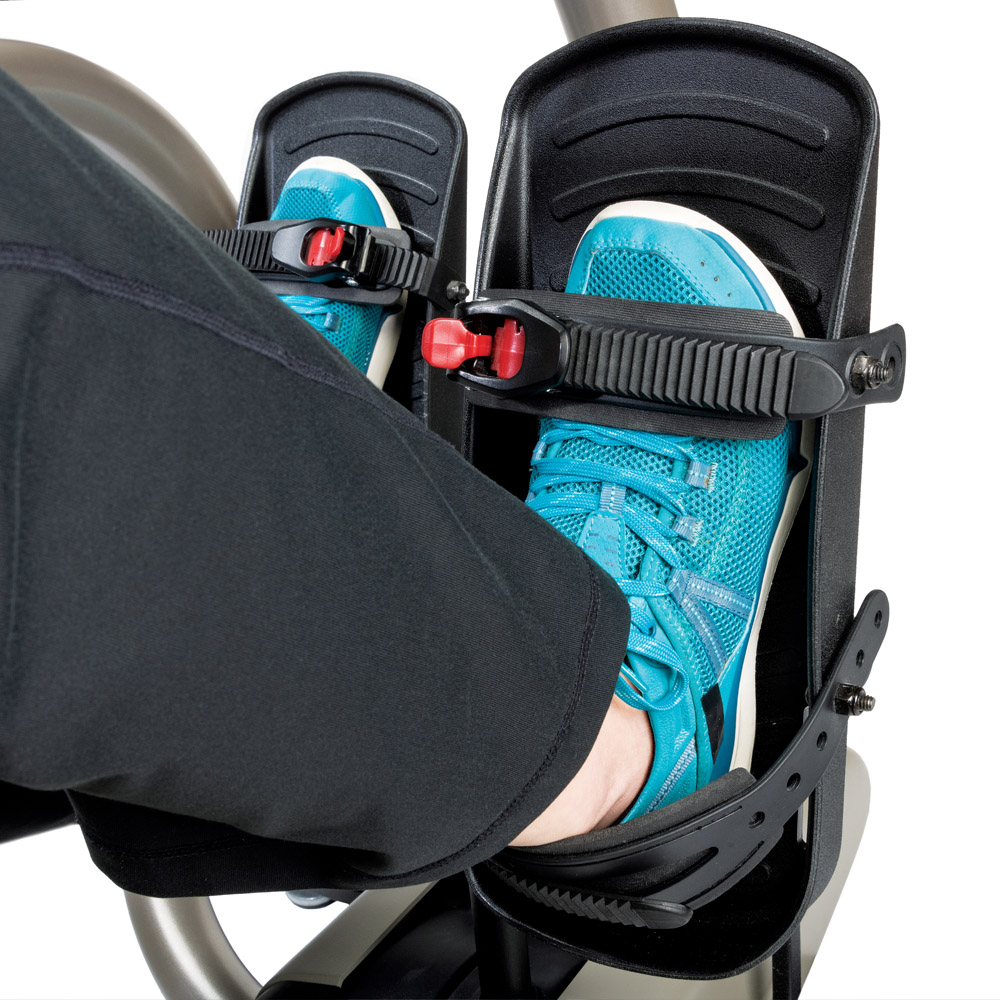

Foot Secure System
Combines the ease of ski boot style adjustment with the effectiveness of two foot straps to secure the feet.
Lap & Torso Belts
Add stability for users with limited mobility or upper body weakness. One size fits all, with strap lengths of 58”.
All options available installed on your new NuStep or as a retrofit kit, ask about the Stability Essentials or Total Essentials Bundle
Purpose-built features with patient safety in mind
Wheelchair accessibility
Designed with a 360° swivel seat to accommodate safe wheelchair transfers and seniors alike.
Low step through height
Designed for safe access by users with mobility limitations.
Stride Lock
One-button lock for arm and leg movement to ensure safe position adjustments by the clinician or patient.
Grab ring
For extra support and safety during transfers. This is included in all T5 systems from OrthoCanada.
Robust Warranty
With 10 years on the frame, 3 years on parts and 1 year of labour.
Polar-compatible
Increase your cardio feedback by adding your own Polar monitor.
Specifications & Model Comparison
Feature
T4r
T5
T5XR
Weight Capacity
400 lb (181 kg)
500 lb (227 kg)
600 lb (272 kg)
Seat Width
17″ (43 cm)
18″ (45 cm)
18″ (45 cm)
Unit Weight
210 lb (95 kg)
298 lb (135 kg)
295 lb (134 kg)
Unit Footprint
60″ x 27″ x 45″ (152 x 69 x 115 cm)
73″ x 30″ x 46″ (185 x 76 x 117 cm)
73″ x 30″ x 46″ (185 x 76 x 117 cm)
Height Capacity
4’6” to 6’4” (137-200cm)
4’6” to 6’7” (137-200cm)
4’6” to 6’7” (137-200cm)
Resistance Level
10 resistance levels
15 resistance levels
15 resistance levels
Programs
Quick Start and Pace Partner (steps/minute only)
Quick start, Manual, Profiles (5 options), Pace Partner (3 options)
Quick start, Manual, Profiles (5 options), Pace Partner (3 options), Target Heart rate, Constant Speed, Constant Power, Exercise Protocol (2 options)
Interactive Display
LCD Display with soft touch buttons
LCD Display with soft touch buttons
LCD Display with soft touch buttons
Seat Adjustability
360° swivel seat
360° swivel seat
360° swivel, 12° reclining seat
Power
Self-generating for most users
Self-generating for most users
Self-generating for most users
Warranty
Frame: 10 years | Parts: 5 years | Labour: 1 year
Frame: 10 years | Parts: 3 years | Labour: 1 year
Frame: 10 years | Parts: 3 years | Labour: 1 year
