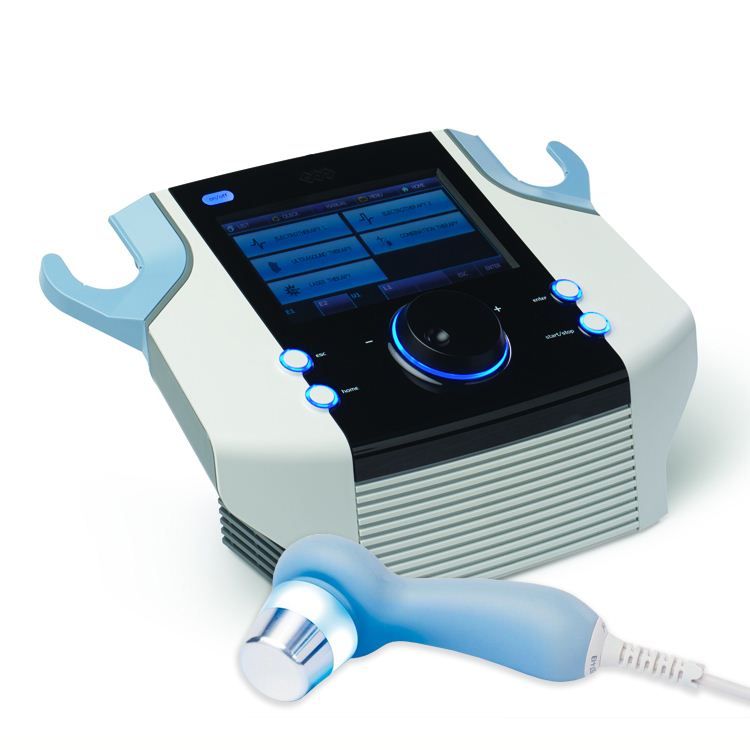

BTL-4710 Premium Ultrasound with 5cm applicator

BTL Physiotherapy

BTL-4710 Premium Ultrasound with 5cm applicator
BTL-4710-PREMIUM
BTL Multifrequency Soundhead 1cm
BTL-4000-1CM
BTL HandsFree Sono 6
BTL-SONO-6
BTL HandsFree Sono 4
BTL-SONO-4
HandsFree Sono Holder
BTL-SONO-PH
HandsFree Sono holder for trolley
BTL-SONO-PT
Cart for BTL-4000 Smart/Premium
BTL-4000-CART
Carrying Bag for BTL-4000 Smart/Premium
BTL-4000-BAG
Battery Pack for BTL-4000 Smart/Premium
BTL-4000-BATTERY
Icon Get expert advice

Get Expert Advice

For healthcare professionals only
1-800-561-0310
Contact us >

Description

Using high-frequency ultrasound therapy is effective in decreasing muscle spasms and reducing pain. BTL’s modern, reliable ultrasound has ergonomically shaped, lightweight and waterproof ultrasound heads with built-in visual contact control. These units have a very low BNR (beam nonuniformity ratio, indicates the quality of the ultrasound beam). A low BNR prevents hot spots and tissue damage. BTL's ultrasound BNR is between 2.2-3 (FDA testing), with variation depending on the soundhead size, and MHz delivered.

Control panel is programmable is multiple languages, including English and French.



Features

- More efficient therapy & elimination of therapist’s fault
- Maximum safety using the embedded Rotary Field Technology
- Equal ultrasound dosage over the entire treated area
- Alternating frequencies 1 and 3 MHz
- Heated ultrasound heads
- Modular frequency is 10-150 Hz
- Duty Factor is 5-100%
- Maximum Intensity in continuous mode is 2 W/cm²
- Maximum Intensity in pulsed mode is 3 W/cm²
- Large 7" colour touch screen that provides clear visualization of all important information
- Extensive library of Preset Protocols, classified according to biological effects, with full colour anatomical images and therapy descriptions including applicator position
- 2 soundheads can be connected simultaneously
- Preset protocols and therapeutic encyclopaedia
- Optional light weight battery increases portability
- Optional models of HandsFree Sono Applicators: 18 cm² with 6 crystals; 12 cm² with 4 crystals
- QUICK protocols
- Body parts navigation
- Patient database
- Includes a rotary knob for increasing Intensity
- MDALL 94143



Documents

Saunders
BTL Ultrasound Devices (PDF)

BTL Physiotherapy Manual (PDF)
