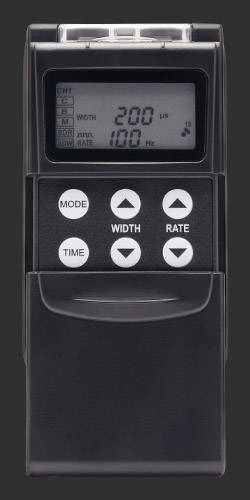

OrthoCanada Pro TENS+
$61.95 - $349.00
Special pricing available on this product for healthcare professionals.
sign in / create account
Description
For optimal pain management and recovery, the new OrthoCanada Pro TENS+ device is lightweight, portable, and powered by an 8-bit microcomputer. Precise performance and accuracy are guaranteed with easy-to-use dial controls and a convenient slide cover that prevents unintended setting changes. These professional-grade units are designed for use by healthcare professionals and patients, and bring pain relief and muscle rehabilitation from the clinic to the comfort of home. Featuring a Patient Lock System and Patient Compliance Meter, patients can confidently manage their treatment while healthcare professionals can set parameters and monitor progress. MDALL 108683.
For optimal pain management and recovery, the new advanced line of OrthoCanada Pro TENS+ devices are lightweight, portable, and powered by an 8-bit microcomputer. Precise performance and accuracy are guaranteed with easy-to-use dial controls and a convenient slide cover that prevents unintended setting changes. These professional-grade units are designed for use by healthcare professionals and patients, and bring pain relief and muscle rehabilitation from the clinic to the comfort of home. Featuring a Patient Lock System and Patient Compliance Meter, patients can confidently manage their treatment while healthcare professionals can set parameters and monitor progress. MDALL 108683.
The OrthoCanada Pro TENS+ system includes:
- Pro TENS+ device
- Two lead wires
- Four electrodes
- Disposable 9-volt battery
- Carrying case
- Quick reference guide
- English instruction manual
- French instruction manual
Approved by Health Canada
The OrthoCanada Pro TENS+ system includes:
- Pro TENS+ device
- Two lead wires
- Four electrodes
- Disposable 9-volt battery
- Carrying case
- Quick reference guide
- English instruction manual
- French instruction manual
Approved by Health Canada
Device Controls
Device Controls
1 CH1 Intensity Control
2 CH2 Intensity Control
3 LCD Display
4 Control Panel
5 Slide Cover
1 CH1 Intensity
Control
2 CH2 Intensity
Control
3 LCD Display
4 Control Panel
5 Slide Cover
Specifications
Display
LCD
Channels
Dual, isolated between channels
Waveform
Asymmetrical bi-phasic square pulse
Amplitude
0-80 mA
Pulse Rate
1Hz-160Hz adjustable,
1Hz/step (1-20Hz),
5Hz/step (20-160Hz)
Pulse Width
50μs-260μs adjustable
10μs/step
Modes
B, C & M, SDR & SDW
Preset Programs
No
Program Lock
Yes
Compliance Meter
Yes
Timer
15, 30, 60 min & C
Battery
9V
Low Battery Indicator
Yes
Size (L x W x D)
4.3” x 2.4” x 0.98”
Weight
140g with battery
Warranty
1 year
MDALL
108683
Code
OC-32036
Compare models
Specifications

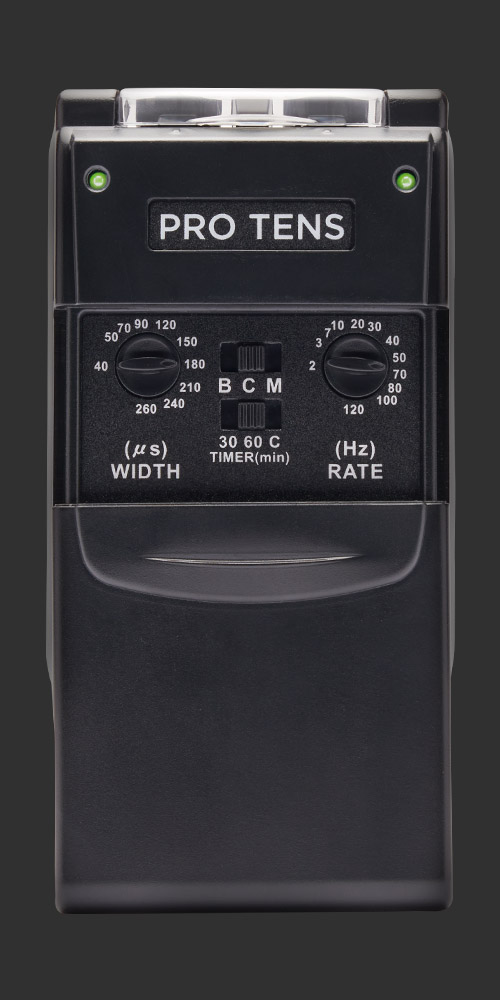

Pro TENS
Pro TENS+

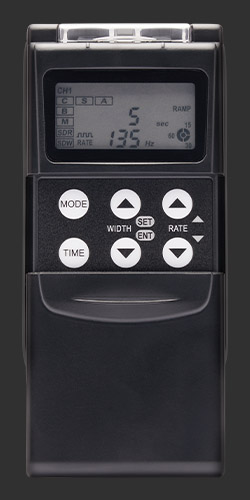

Pro TENS / EMS
Display
Analog
LCD
LCD
Channels
Dual, isolated between channels
Dual, isolated between channels
Dual, isolated between channels
Waveform
Asymmetrical bi-phasic square pulse
Asymmetrical bi-phasic square pulse
Asymmetrical bi-phasic square pulse
Amplitude
0-80 mA
0-80 mA
0-80 mA
Pulse Rate
2Hz-120Hz
1Hz-160Hz adjustable,
1Hz/step (1-20Hz),
5Hz/step (20-160Hz)
1Hz-160Hz adjustable,
1Hz/step (1-20Hz),
5Hz/step (20-160Hz)
Pulse Width
40μs-260μs
50μs-260μs adjustable
10μs/step
TENS: 50μs-260μs
adjustable, 10μs/step
EMS: 250μs fixed
Modes
B, C & M
B, C & M, SDR & SDW
TENS: B, C & M SDR & SDW
EMS: S & A
Preset Programs
No
No
No
Program Lock
No
Yes
Yes
Compliance Meter
No
Yes
Yes
Timer
30, 60 min & C
15, 30, 60 min & C
15, 30, 60 min & C
Battery
9V
9V
9V
Low Battery Indicator
Yes
Yes
Yes
Size (L x W x D)
3.7” x 2.4” x 1”
4.3” x 2.4” x 0.98”
4.3” x 2.4” x 0.98”
Weight
120g with battery
140g with battery
140g with battery
Warranty
1 year
1 year
1 year
MDALL
108683
108683
108683
Code
OC-32035
OC-32036
OC-32037
Compare models
