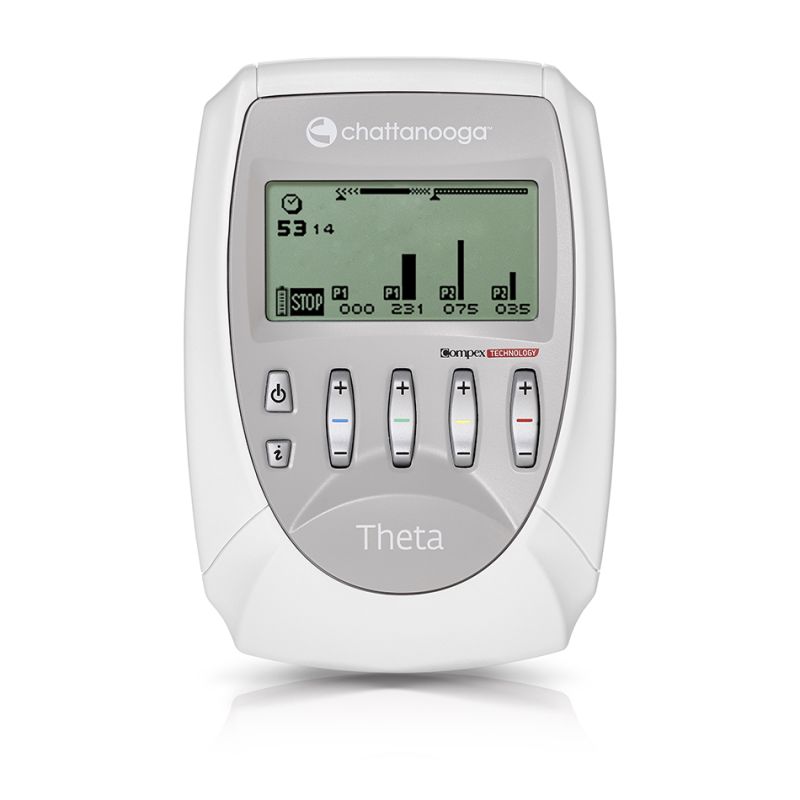

Theta - 4 Channel TENS & NMES w/Mi Technology

Choose the THETA if you want to include co-contraction in muscle stimulation, neurological applications, or protocols for specific pathologies such as an ACL Ligmentoplasty. Can be used at home or in a clinic setting.



Programs

- 4 standard + 4 Full programmes categories:
- Rehabilitation I&II
- Pain Relief I&II
- Vascular
- Neurologic Rehabilitation
- Conditioning I&II



Program Details

Muscle Intelligence Technology: 4 functions for all 4 channels: Mi- Scan, Mi-Tens, Mi-Range, Mi-Action

2+2: One program can be chosen for channel 1 and channel 2, and at the same time another program can be chosen for channel 3 and channel 4, allowing treatment of two different body parts, or two patients simultaneously, or combines NMES and TENS in one treatment

Trigger Function: The stimulation starts when the trigger buton is pressed

Skip: The session time can be managed and move directly to the next phase (recovery) when needed

Motor Point Pen: Helps to ensure the optimal electrode placement

Programmability: Users can create and personalize programs

Speed Charge: A full charge cycle takes a maximum of 2.5 hours



What's Included

- Set of 4 pin cables
- Protecting cover
- Belt clip
- Motor Point Pen
- Snap adaptor kit
- Mi cables (x2)
- Battery pack for Rehab, Theta, Physio
- Fast Charger Rehab - Theta - Physio
- Dura-Stick® Plus 5 x 10 cm cloth - double mi-snap (2 pack)
- Dura-Stick® Plus 5 cm (2”) cloth, mi-snap
- Electrode placement leaflet
- Bottle of gel 250 ml
- Transportation pouch
- Quick start guide + warning leaflet
- Practical guide on CD/USB
- User manual



Product Specifications

Channels	4
Constant Current	Max 1300 Ohm/Channel
Max Pulse Intensity	120 mA
Pulse Intensity Increments	0.25 mA
Pulse Width	30 - 400 uS
Pulse Frequency	1 - 150 Hz
Waveforms	Symmetrical Biphasic 100% compensated
Dimensions	138x95x33mm
Warranty	3 yrs
MDALL	86092



Additional Information

Chattanooga Catalog [PDF]
