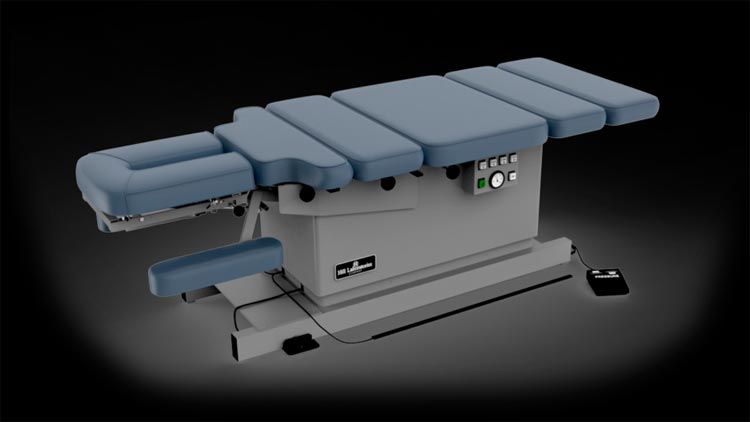

Hill Laboratories HA-90 Air Drop Adjusting Table

SKU: EQ-HA90C-AD

9169

Special pricing available on this product for healthcare professionals.
sign in / create account

Icon Get expert advice

Get Expert Advice

For healthcare professionals only
1-800-561-0310
Contact us >

Description

If you have used a manual drop table for any length of time, then you’ll appreciate the impressive speed and ease of treating with the Air-Drop HA90C. Equipped with the Hill Air-Drop System, the HA90C allows doctors to select one or up to four drops simultaneously from the convenient, side-mounted, control panel. Once a section has been dropped, it is instantly reset with the simple touch of a foot pedal.

All of the pneumatic components on the Air-Drop HA90C are supplied by a large air-storage tank and mini-compressor which are neatly enclosed within the table’s base skirting. The compressor runs quietly and only periodically (approximately 1 minute) to replenish the air-tank.

The table features a Thoracic Air-Breakaway Section controlled by a foot pedal. The pedal increases or decreases the air-spring pressure in the thoracic and lumbar sections providing a controlled recoil action. It can also be locked in any position down to 51/2” for treating patients with a large abdominal region.

The drops included on the Air-Drop HA90C are Cervical, Thoracic, Lumbar, and Pelvic. The Cervical Drop has dual action enabling either straight or forward-drop action. All drops are controlled by the included foot-strips located on both sides of the table.

Like all Hill Adjustables, the Air-Drop HA90C has electric adjustable-height. Height is adjusted with a rocker foot pedal that is mounted to the base and can be accessed from either side of the table. A standard operating range from 21.5" to 31"(see optional ranges below) allows the doctor to work at a comfortable treatment level.



Base Air-Drop HA90C Standard Features

Height controlled by Rocker Foot Pedal
Height Range Standard: 21.5" to 31" (see options below)
Width 24", Length 6'3"
Armrests, 13" Face cut-out, Paper Roll, Cutter
Air-Powered Thoracic Spring Breakaway
Air-activated Cervical, Thoracic, Lumbar and Pelvic drops (see short video)
Tilting Headpiece, 30° Positive and Negative Tilt
Power Foot-Strips (activate drops)
Drop-Away Foot Section
Choice of 20 vinyl colors for the top
Beige, Grey or Black thermo-plastic base cover with Microban® Antimicrobial Protection
One-year warranty on all parts (Dealer on-site labor warranty may vary)



Headpiece Options
Raised Headpiece
Headpiece raises up to 5" above the surface of the table.





Manual Cervical Drop Substitute
Manual Cervical drops in place of pneumatic drops
CBP Headpiece (requires Rasied Headpiece)
Used for Chiropractic BioPhysics, includes later & translation functions (not avaialble with Flexion headpiece)


Flexion Headpiece (req. Raised Headpiece)
A manual pnuematic flexion headpiece that can be combined with either a manual or air dual drop.  Includes Sliding Axial Motion.

Sliding Axial Motion
This option is highly recommended to improve patient comfort with the ability to unlock the headpiece to move in an axial motion








Table Options
Raised Pelvic Section
Tilts and locks up to 5 inches.





Male Notch in Pelvic Drop

Slide-Out & Raised Ankle
Adjusts up to 8" in height & extends to 12" from the end of the table


Adjustable Armrests
Elevating armrests can be raised for supine support - often used for massage therapy









Foot and Hand Controls
Extra Control Box
Additional control box mounted on the other side of the table





Extra Foot Pedal for Air Control at Head-end
Additional foot pedal added to the head-end of the table to control the air pressure
Extra Foot Pedal for Air Control at Foot-end
Additional foot pedal added to the foot-end of the table to control the air pressure

Extra Foot Pedal for Height at Head-end
Additional foot pedal added to the head-end of the table to control the table height

Extra Foot Pedal for Height at Foot-end
Additional foot pedal added to the foot-end of the table to control the table height
Auto-Touch Foot Pedal
A pedal that will raise the table to the maximum height AND lower the table to the minimum height when tapped once.  Auto-touch foot pedals still retain the standard adjustable height function by pressing the pedal again to stop the height.


Toggle Height Switch
Added in addition to the height foot pedal to control the height by hand.  It mounts under any cushion.  Like a foot pedal, it activates when pressed, has up on one side and nown ont he other side and neutral in the middle
Caster System for Mobility
Makes moving the table easy.  Engaged with a foot lever on both ends of the table.  Not an option with adjustable feet.








Width, Height and Upholstery
2" Base Extension Legs
Raises starting height of table 2" to 23.5"





3" Base Extension Legs
Raises starting height of table 3" to 24.5"
27" width
27" wide cushions (not recommended for Drs under 6 ft tall or with limited reach)


Removable width extensions
3" x 21".  Adds 6" to the width of the table.  Used for massage therapy, often combined with adjustable arm rests.
Finesse Tricot Material
Foam-backed, puncture resistant with the look and feel fo fine leather.








Matching Exam Stools

Gas-powered Stool
Can be upholstered to match your Hill table and office decor.  Pneumatic (gas-powered) adjustable height control by a lever





Gas-powered Stool with Backrest
Can be upholstered to match your Hill table and office decor.  Pneumatic (gas-powered) adjustable height control by a lever
