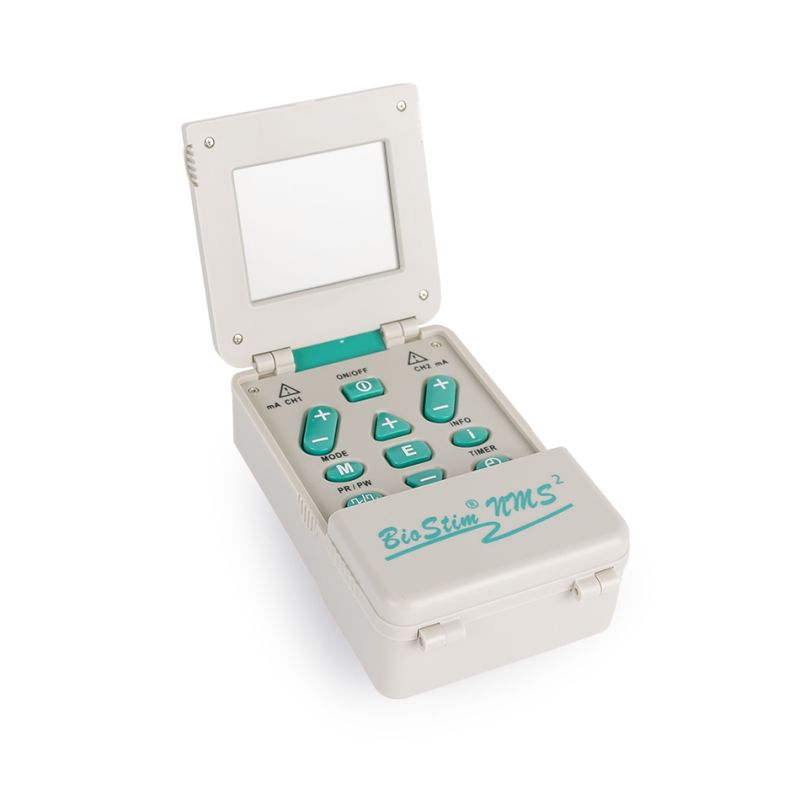

BioStim NMS2

The BioStim NMS2 is extremely flexible, powerful, comfortable and user friendly!

It functions like a TENS in constant mode to achieve pain relief. The patient or therapist can easily toggle from pain relief settings, to a muscle building program with the push of one button. With both symmetrical bi-phasic square waveform and asymmetrical bi-phasic square to target both nerve endings and muscle for pain relief and muscle re-education. You are also familiar with the adjustable pulse width that enables the therapist to customize how strong each contraction will be.

There are (8) user friendly pre-set therapy settings to accommodate a wide population range from pediatric applications to professional athletes. The device holds up to three custom programs and it is easy for the patient to toggle between them. The custom programs remain set into the device until they are changed or reset.

The Patient Compliance meter starts recording how many hours the device has been used from the first time it is issued to the patient, until the device is reset by the dealer or therapist. The adjustable pulse width setting enables patients of all tolerance levels to achieve success in their rehab program.

Size: 3.9" x 2.6" x 1.3" (99mm x 65mm x 33 mm)

Weight: 8 oz (266 grams)

Channels: Dual

Waveform: Symmetrical biphasic square (SYM) and Asymmetrical biphasic square (ASYM)

Pulse Rate: Adjustable 1-120 Hz (Hertz); pulses/sec

Pulse Width: Adjustable 50-400 μS (microseconds)

Ramp On, Ramp Off: 0-10 seconds

Patient Timer: 0-99 minutes

Modes: Constant, Cycled, Reciprocal

Intensity/Output Voltage: Continuously adjustable from 0-120mA, peak (0-60V) +/- 10%

Tolerance: All parameters +/- 2% unless otherwise noted

Power Supply: 4 batteries Type AA

MDALL 74188
